Simpson Strong-Tie DHU3.56/11.88TF
•Available to order skewed up to 45°
•Testing verifies that the DHUTF hangers do not reduce the two-hour fire wall assembly rating in either 2×4 or 2×6 walls
•DHUTF fire wall hangers are code listed for structural use under ICC-ES ESR-2552
•Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
•If hangers are installed on both sides of the wall, then it must be a 2×6 wall
•Seat width: 3-9/16 in.
•Height: 11-13/16 in.
•Made from 12-gauge steel
•Galvanized (G90) for extra corrosion resistance

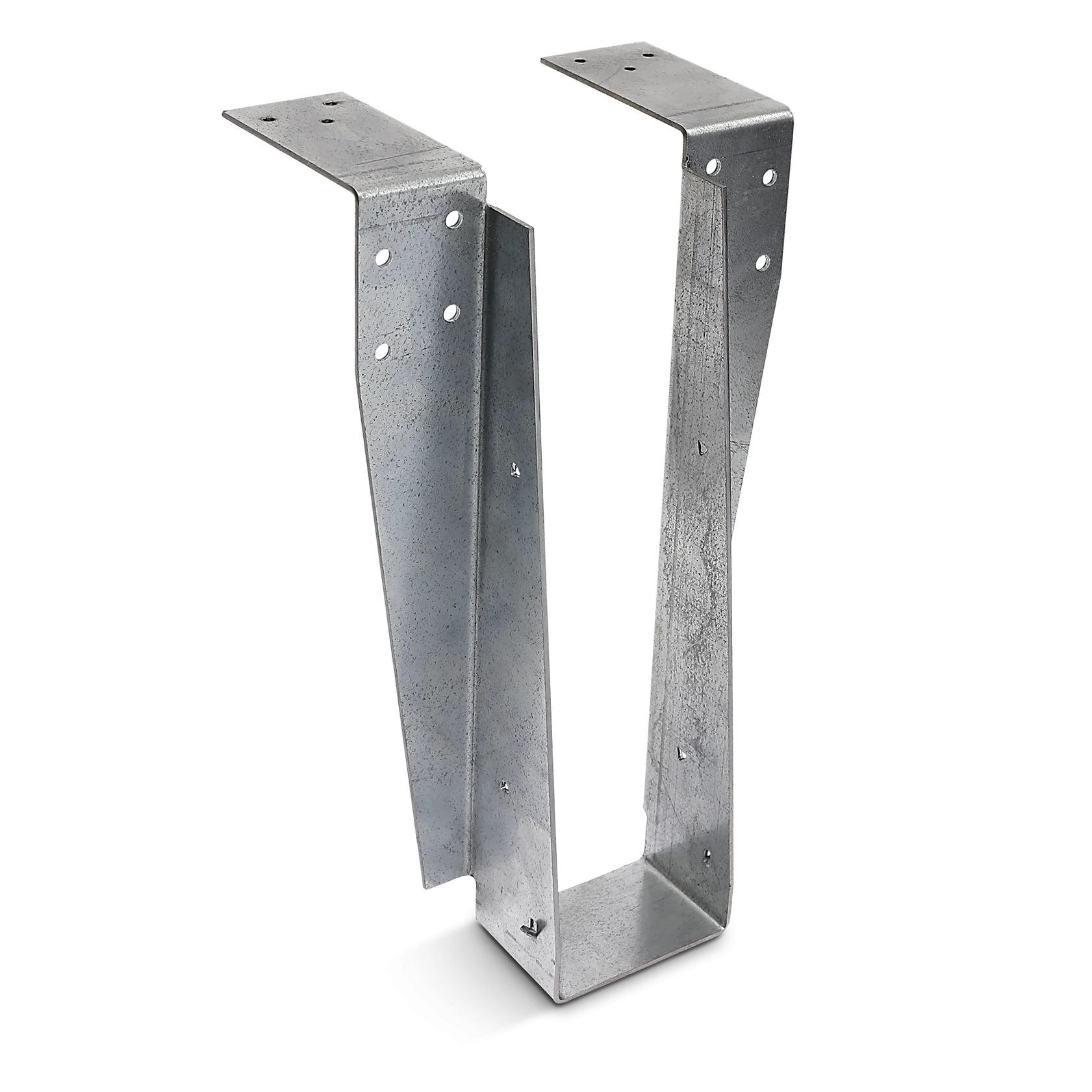

Simpson DHU3.56/11.88TF Top-Flange Drywall Hanger
TheSimpson DHU3.56/11.88TF Top-Flange Drywall Hangeris expertly engineered to ensure maximum performance and reliability in your construction projects. This top-mount hanger is specifically designed for use with3-1/2 in. x 11-7/8 in. engineered wood, making it a perfect choice for various applications.
Key Features:
- Exceptional Strength:Manufactured to the highest quality standards, these hangers deliver outstanding structural strength and safety.
- Efficient Installation:Designed for installation after drywall is in place, saving time on your construction schedule.
- Versatile Design:Perfect for carrying joist floor loads to a wood stud wall, accommodating two layers of 5/8-in. gypsum board.
- Includes SDS Screws:Each hanger comes equipped with SDS screws, ensuring a secure and reliable connection.
Why Choose Simpson DHU3.56/11.88TF?
When it comes to structural components, trust in a brand known for durability and reliability. TheSimpson DHU3.56/11.88TFnot only meets the rigorous demands of the construction industry but also enhances the overall integrity of your structure.
