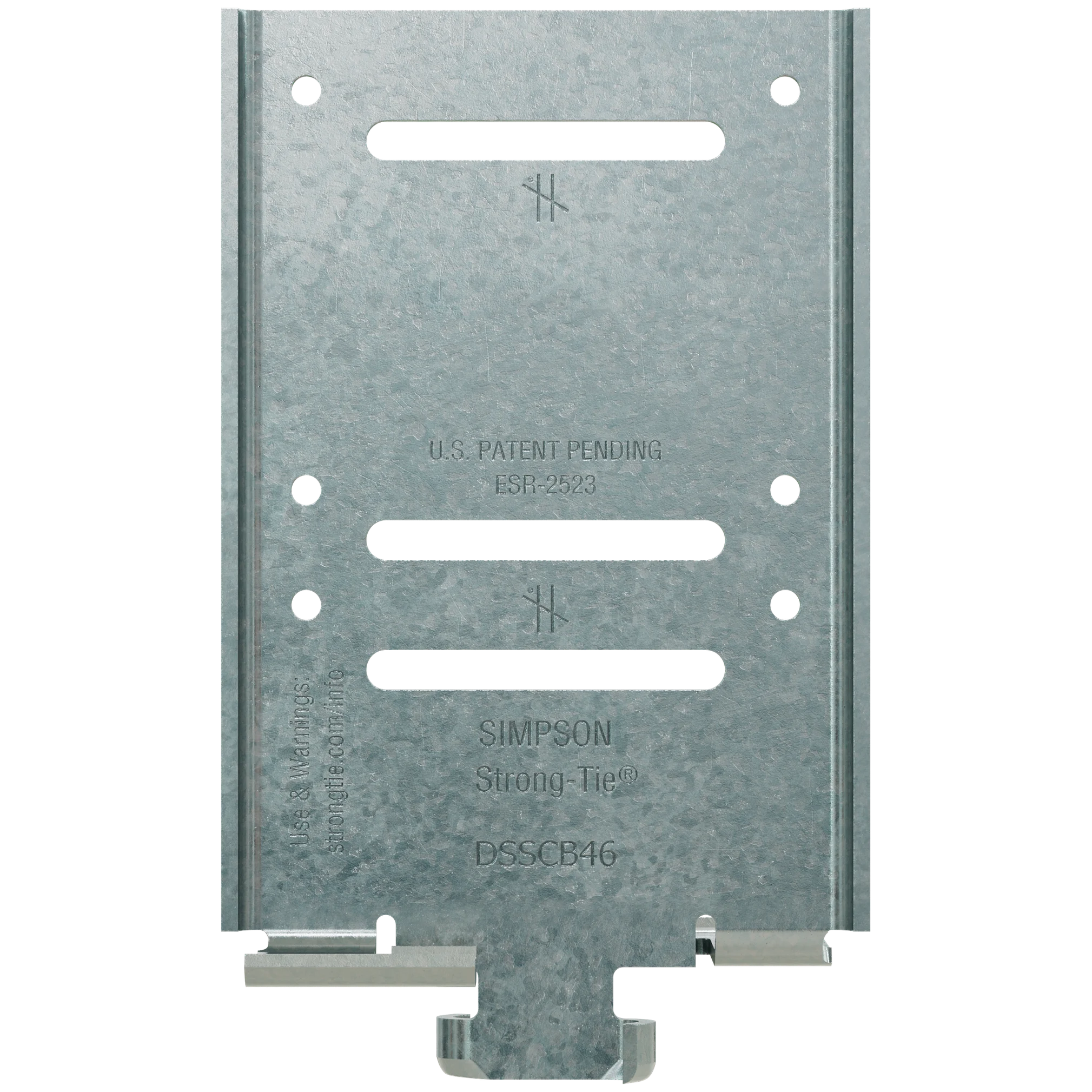

Simpson DSSCB46-KT25 DSSCB 4 in. x 6 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)

Simpson Strong-Tie DSSCB46-KT25
•Prepunched slots provide a full 1 in. of both upward and downward deflection
•Precision-manufactured shouldered screws, provided with DSSCB connectors, are designed to prevent overdriving and to ensure the clip functions properly
•Works with 7/8-in. and 1-5/8-in. strut channels; common manufactured brands are Unistrut, PHD and B-Line; struts are not supplied by Simpson Strong-Tie
•The maximum slide-clip standoff distance is 3-1/8 in. for 7/8-in. struts, 3-7/8 in. for 1-5/8-in. struts and 2-1/4 in. for concrete inserts
•Depending on the application and the designer’s specifications, struts can be either mechanically anchored, welded or cast in place
•Tabulated design values are based on assembly testing to mitigate risk for designers, engineers and architects
•Made from 97 mil (12 ga.), 50 ksi steel
•Galvanized (G90) for corrosion resistance
•Quantity: 25 per box

Discover the Simpson DSSCB46-KT25 Bypass Framing Drift Strut Connector

TheSimpson Strong-Tie DSSCB46-KT25is an essential component for any construction project involving cold-formed steel bypass framing. This innovative 4 in. x 6 in. connector is specifically designed to anchor bypass framing securely to the edge of floor slabs, accommodating the necessary horizontal building drift.

Key Features:

• Effortless Installation:The DSSCB simplifies the installation process, enabling builders to attach finished panels while standing on top of the slab, eliminating the need for predrilling or preinstalling individual anchors for each clip.
• Enhanced Coordination:Say goodbye to the complexities of pre-anchoring standard bypass clips. The DSSCB streamlines your workflow, allowing for a more efficient construction process.
• Versatile Functionality:Equipped with prepunched slots and round holes, this dual-function connector supports both slide-clip and fixed-clip applications, providing versatility for various construction needs.
• Durable Design:Constructed with high-quality materials, the DSSCB is built to withstand rigorous building demands while ensuring the integrity of your framing system.

Specifications:

• Dimensions: 4 in. x 6 in.
• Quantity: 25 connectors included

Upgrade your construction toolkit with theSimpson DSSCB46-KT25 Bypass Framing Drift Strut Connectorand experience the benefits of innovative design and practical functionality in your next project.
