Simpson FC32-5/97-R25 FC 2 in. x 3-1/2 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)

Simpson Strong-Tie FC32-5/97-R25
•Intended to be used with 3-5/8 in. studs
•The maximum standoff distance is 1 in. for 3-5/8 in. studs
•Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip
•Prepunched large-diameter anchor holes accommodate 1/4-in. diameter concrete screws like the Simpson Strong-Tie Titen HD screw anchor
•Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157-in. diameter Simpson Strong-Tie PDPAT or #12 self-drilling Simpson Strong-Tie Strong-Drive XL Large-Head Metal screw
•Made from 12-gauge (97-mil) steel
•Galvanized (G90) for extra corrosion resistance
•Length: 3-1/2 in.
•Quantity: 25

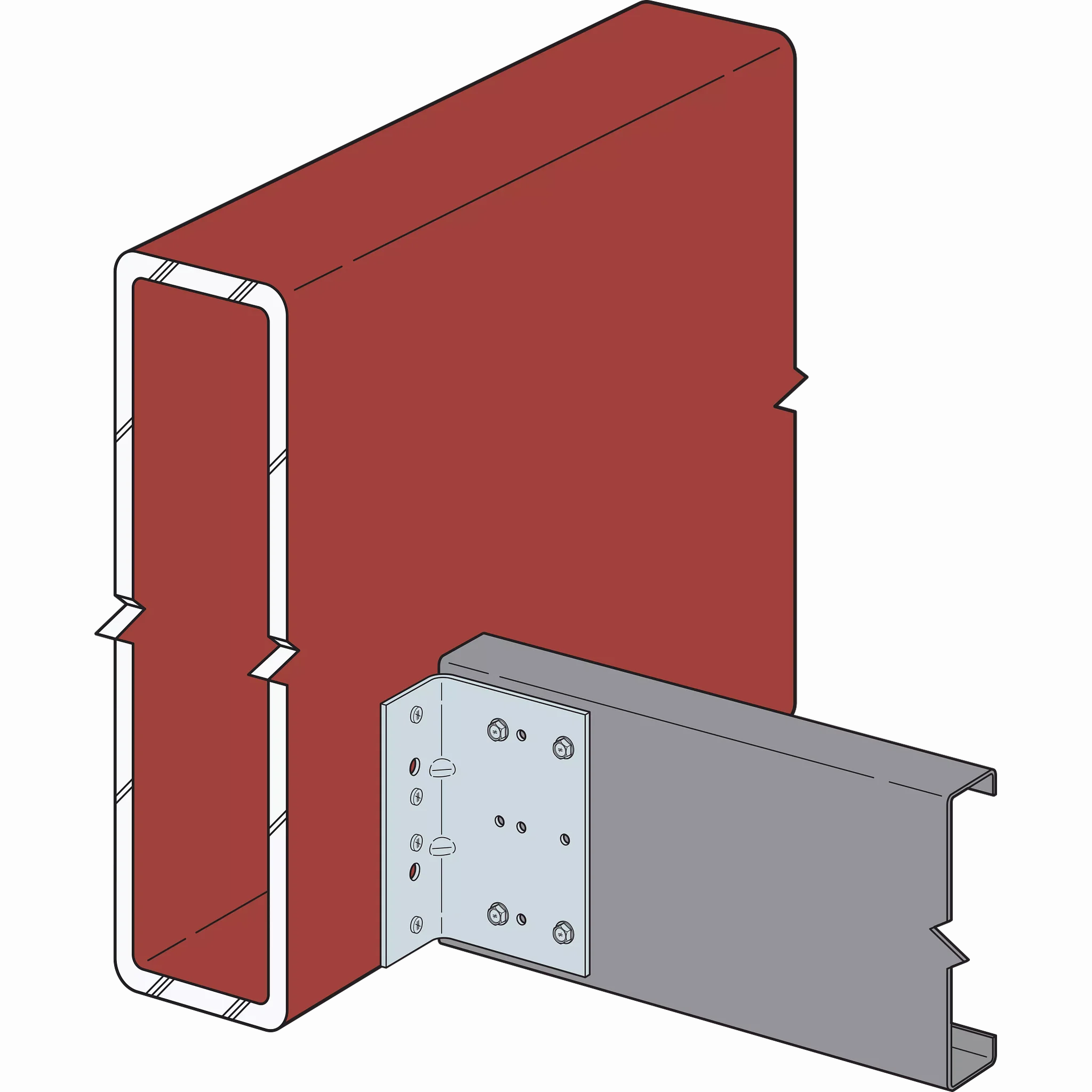

Simpson FC32-5/97-R25 FC Bypass Framing Fixed-Clip Connector

TheSimpson Strong-Tie FC32-5/97-R25is your go-to solution for superior framing in high-seismic areas. Designed with precision and strength in mind, this 12-gauge bypass framing fixed-clip connector ensures unparalleled stability and safety for your structural projects.

Key Features:

• High-Seismic Performance:Engineered specifically for use in earthquake-prone regions, providing reliable performance under seismic loads.
• Versatile Anchorage:Equipped with anchorage holes that allow for the use of concrete screws or powder-actuated fasteners, giving you flexibility in installation.
• Prepunched Screw Holes:Designed for easy framing attachment, eliminating the need for pre-drilling and ensuring precise fastener placement as per design specifications.
• Durable Construction:Made from heavy-duty 10- or 12-gauge steel, these connectors offer exceptional resistance and longevity, even under demanding conditions.
• Quantity Pack:Supplied in a convenient pack of 25, ensuring you have enough connectors for your job without compromise.

Upgrade your framing solutions with theSimpson FC32-5/97-R25 FC Fixed-Clip Connectorand experience the reliability and strength that only Simpson Strong-Tie can deliver. Perfect for contractors and builders who demand quality and performance in their projects.
