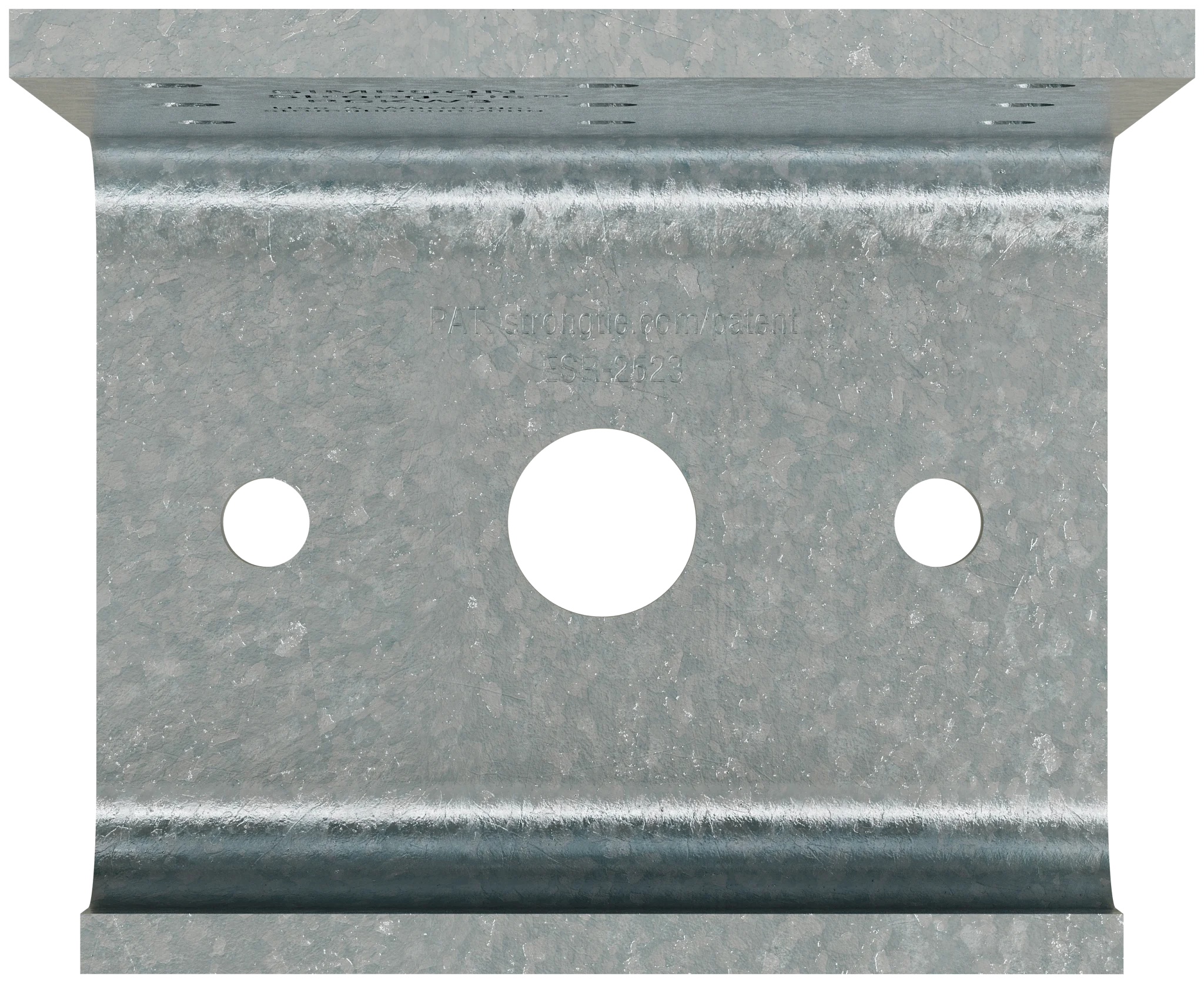

Simpson RCKW3-R10 RCKW 3-in. Kneewall Connector Clip (Qty-10)

Simpson Strong-Tie RCKW3-R10
•RCKW3 has a large single bolt hole in the center for 3-5/8 in. framing
•Anchorage legs incorporate stiffened flanges, improving overturning moment resistance
•Large-diameter anchor hole accommodates 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD heavy-duty screw anchor and the Strong-Bolt 2 wedge anchor
•Additional smaller-diameter anchor holes enable attachment to structural steel through use of #12 self-drilling screws
•Attachment to CMU can be achieved with Titen HD or Titen Turbo concrete and masonry screw
•Width: 3 in.
•Made from 171 mil (7 ga.) steel
•Galvanized (G90) for corrosion resistance
•Quantity: 10

Simpson RCKW3-R10 RCKW 3-in. Kneewall Connector Clip (Qty-10)

Introducing the **Simpson Strong-Tie RCKW3-R10**, a robust solution designed for superior stability in construction projects. Crafted from heavy-duty 171 mil (7 ga.) material, this **rigid connector clip** is engineered to withstand the forces that can lead to overturning moments at the base of:

• Exterior kneewalls
• Parapets
• Interior partial-height walls
• Overhead ribbon window conditions

What sets the RCKW3-R10 apart:

• Versatile Anchorage:Features a unique small and large anchor-hole pattern for easy anchorage to both concrete and structural steel.
• Enhanced Load Capacity:For projects requiring additional strength, easily integrate the RCKWS stiffener (sold separately) that nests perfectly onto the RCKW clip.
• Simplified Installation:The alignment of screw holes and anchor holes between the RCKW clip and the RCKWS stiffener ensures quick and efficient fastener and anchor installation.

With the Simpson RCKW3-R10 Kneewall Connector Clips, you can ensure reliable support and stability for your construction needs. Choose quality, choose strength, choose Simpson.
