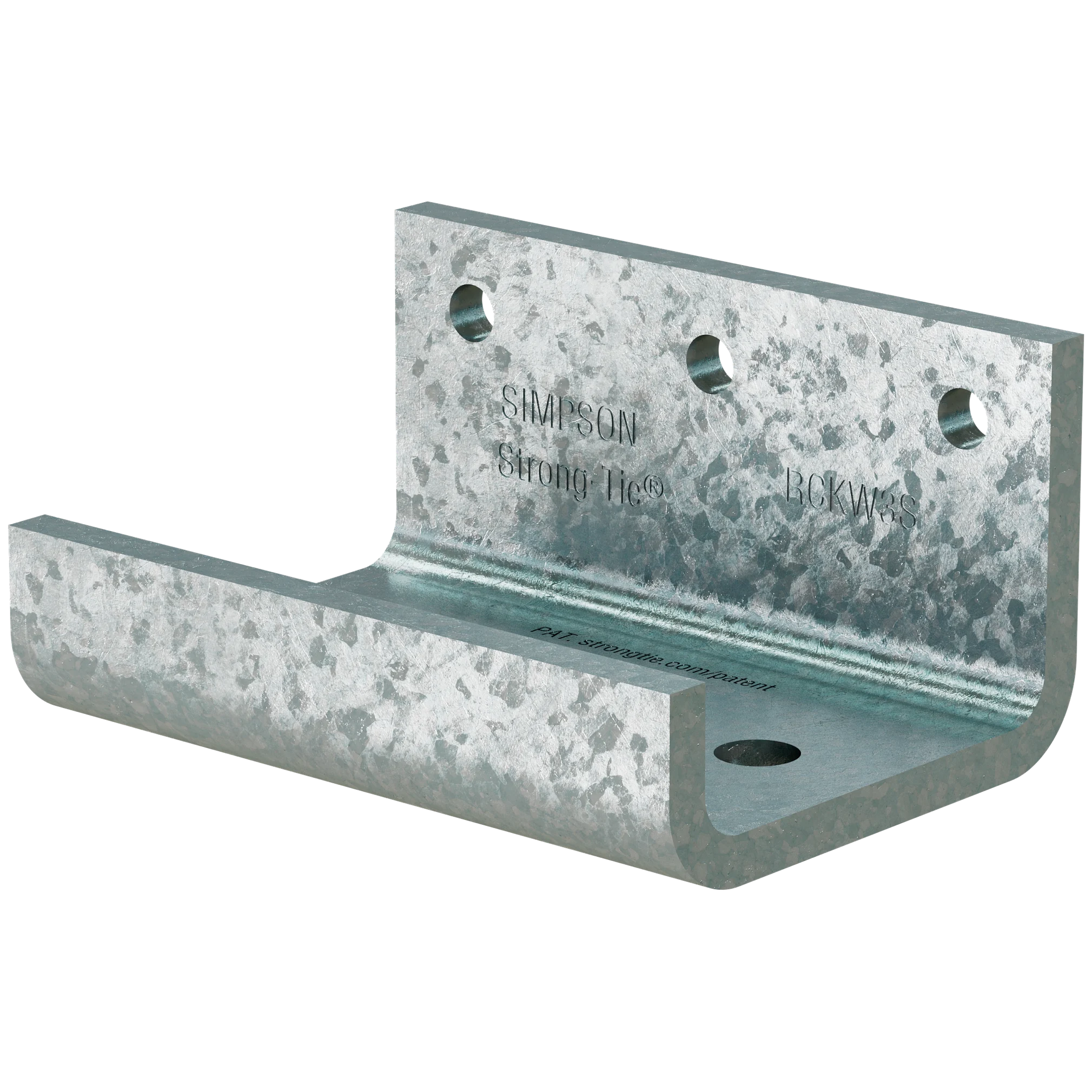

Simpson RCKW3S-R10 RCKWS 3-in. Kneewall Connector Stiffener (Qty-10)

Simpson Strong-Tie RCKW3S-R10
•RCKW3S has a large single bolt hole in the center for 3-5/8 in. framing
•Anchorage legs incorporate stiffened flanges, improving overturning moment resistance
•Large-diameter anchor hole accommodates 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD heavy-duty screw anchor and the Strong-Bolt 2 wedge anchor
•Additional smaller-diameter anchor holes enable attachment to structural steel through use of #12 self-drilling screws
•Attachment to CMU can be achieved with Titen HD or Titen Turbo concrete and masonry screw
•Width: 3 in.
•171 mil (7 ga.) stiffener is secured to the RCKW clip with screws, optimizing overturning moment resistance and stiffness
•Galvanized (G90) for corrosion resistance
•Quantity: 10

Simpson RCKW3S-R10 RCKWS 3-in. Kneewall Connector Stiffener (Qty-10)

Enhance the stability and safety of your construction projects with theSimpson Strong-Tie RCKW3S-R10 RCKWS 3-in. Kneewall Connector Stiffener. This robust connector is meticulously designed to resist overturning moments at the base of various wall structures, ensuring a secure foundation for your builds.

Key Features:

• Heavy-Duty Construction:Made from a durable 171 mil (7 ga.) material, the RCKWS ensures longevity and strength in demanding conditions.
• Versatile Anchoring:Features a unique small and large anchor-hole pattern, allowing for anchorage to both concrete and structural steel.
• Enhanced Load Capacity:For applications requiring additional support, the RCKWS stiffener can be easily added to the RCKW clip.
• Easy Installation:The alignment of screw and anchor holes between the stiffener and clip simplifies the installation process, saving you time and effort.
• Multi-Functional:Ideal for exterior kneewalls, parapets, and interior partial-height walls or overhead ribbon window conditions.

Why Choose Simpson Strong-Tie?

When it comes to structural integrity, trust the innovative solutions offered bySimpson Strong-Tie. With their commitment to quality and performance, you can be confident that the RCKW3S-R10 RCKWS will provide the reliable support needed for your construction needs.
