Simpson Strong-Tie RCKW5.5-R10
•RCKW5.5 has three large holes for added versatility — the center hole is for a one-anchor solution at the edge or center of slab; the outer holes are for a two-anchor solution that requires higher capacities at the center of slab

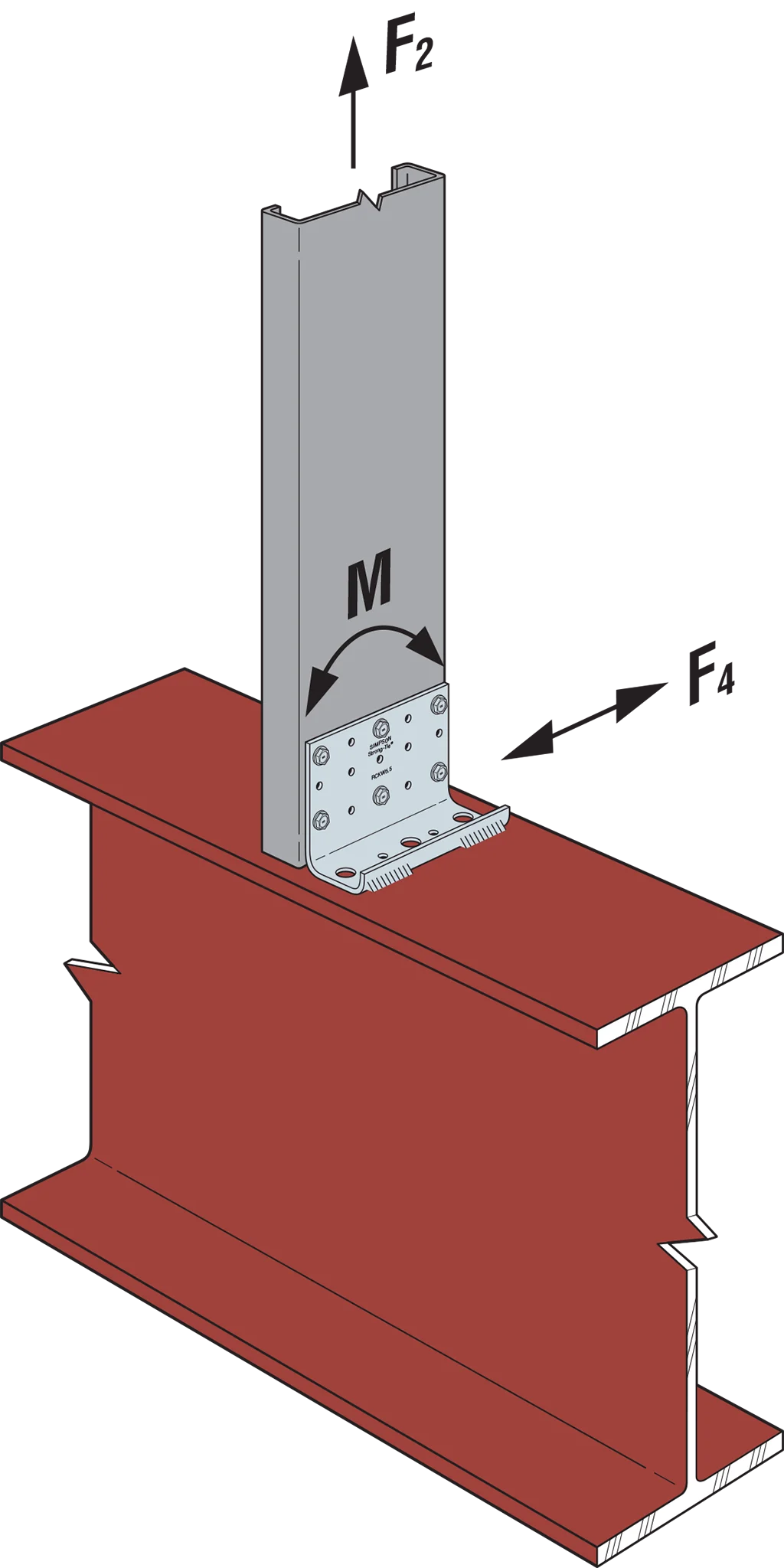

•Anchorage legs incorporate stiffened flanges, improving overturning moment resistance
•Large-diameter anchor holes accommodate 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD heavy-duty screw anchor and the Strong-Bolt 2 wedge anchor
•Additional smaller-diameter anchor holes enable attachment to structural steel through use of #12 self-drilling screws
•Attachment to CMU can be achieved with Titen HD or Titen Turbo concrete and masonry screw
•Width: 5 1/2 in.
•Made from 171 mil (7 ga.) steel
•Galvanized (G90) for corrosion resistance
•Quantity: 10
Elevate Your Construction Projects with Simpson RCKW5.5-R10 Kneewall Connector Clip
TheSimpson Strong-Tie RCKW5.5-R10is a robust solution for ensuring the stability and integrity of your structures. Designed specifically for exterior kneewalls, parapets, and interior partial-height walls, this 5.5-inch connector clip is engineered to handle overturning moments effectively.
Key Features:
- Heavy-Duty Construction:Crafted from 171 mil (7 ga.) rigid steel, the RCKW clip guarantees exceptional strength and durability.
- Versatile Anchorage Options:Features a unique small and large anchor-hole pattern that allows for secure attachment to both concrete and structural steel.
- Enhanced Load Capacity:For projects requiring additional strength, the optional RCKWS stiffener can be easily added, nesting onto the RCKW clip.
- Easy Installation:With aligned screw holes and anchor holes, the installation process is quick and efficient, saving you time on the job.
Application Versatility:
Ideal for a variety of construction applications, the Simpson RCKW5.5-R10 is perfect for:
- Exterior kneewalls
- Parapets
- Interior partial-height walls
- Overhead ribbon window conditions
Whether you’re a professional contractor or a dedicated DIY enthusiast, theSimpson RCKW5.5-R10 Kneewall Connector Clipis designed to meet your structural needs with reliability and ease. Invest in quality and ensure your projects stand the test of time.
