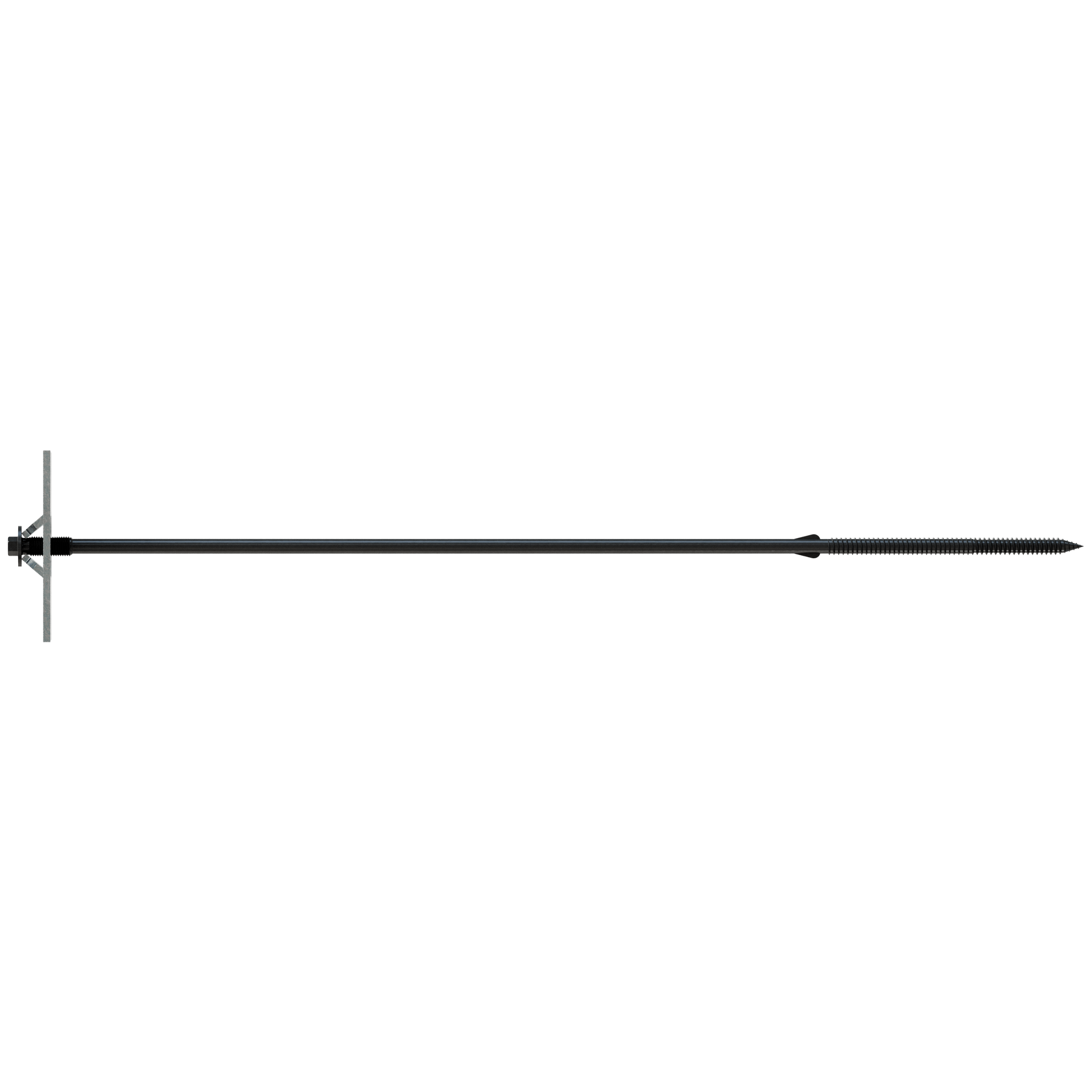

Simpson SDWF2720-TUW Strong-Drive SDWF FLOOR-TO-FLOOR Screw — 0.270 in. x 20 in. 5/16 Hex, E-coat (25-Qty)

Simpson Strong-Tie SDWF2720-TUW
•Faster to install than other floor-to-floor connection methods — drive the screw, install the take-up washer and the connection is made from plate-to-plate
•Shrinkage compensation ensures a tight connection even after initial shrinkage and settlement occur
•Installs from inside the structure, eliminating exterior work on upper stories and enhancing job safety
•Fastening can be done before or after exterior sheathing is applied for added flexibility
•One screw length can be used for multiple floor depths, reducing the need for many screw lengths
•Drive Type: 5/16 in. Hex
•Length: 20 in.
•E-coat electrocoating is recommended for dry, low-corrosion environments
•Quantity: 25
•Kit includes all required installation hardware: (25) Strong-Drive SDWF Floor-to-Floor screws, (25) TUW take-up washers, (100) Strong-Drive SD Connector screws (#9), 5/16 in. hex driver bit, screw depth guide to ensure proper SDWF engagement with TUW

Simpson Strong-Drive SDWF Floor-to-Floor Screw

TheSimpson Strong-Drive SDWF2720-TUW Floor-to-Floor Screwis engineered for exceptional performance and reliability in construction applications. With a diameter of0.270 inchesand a length of20 inches, this screw is your go-to solution for creating robust connections between upper and lower walls.

Key Features:

• Innovative Design:The SDWF screw is specifically designed to simplify the wind-uplift restraint connection, making installation straightforward and efficient.
• Superior Performance:Its unique architecture ensures long-lasting performance throughout the life of your structure, handling uplift loads with ease.
• Easy Installation:This screw spans the floor system, enabling quick and easy connections within the continuous uplift load path.
• Take-Up Washer Advantage:The innovative Take-Up Washer (TUW) enhances long-term performance by providing an effective interface between the screw head and the sole plate of the upper floor.

Specifications:

• Quantity:25 screws per pack
• Hex Size:5/16 inch
• Finish:E-coatfor enhanced corrosion resistance

Invest in theSimpson Strong-Drive SDWF Floor-to-Floor Screwfor a reliable and innovative solution that meets the demands of modern construction. Experience peace of mind with connections designed to endure the test of time.
