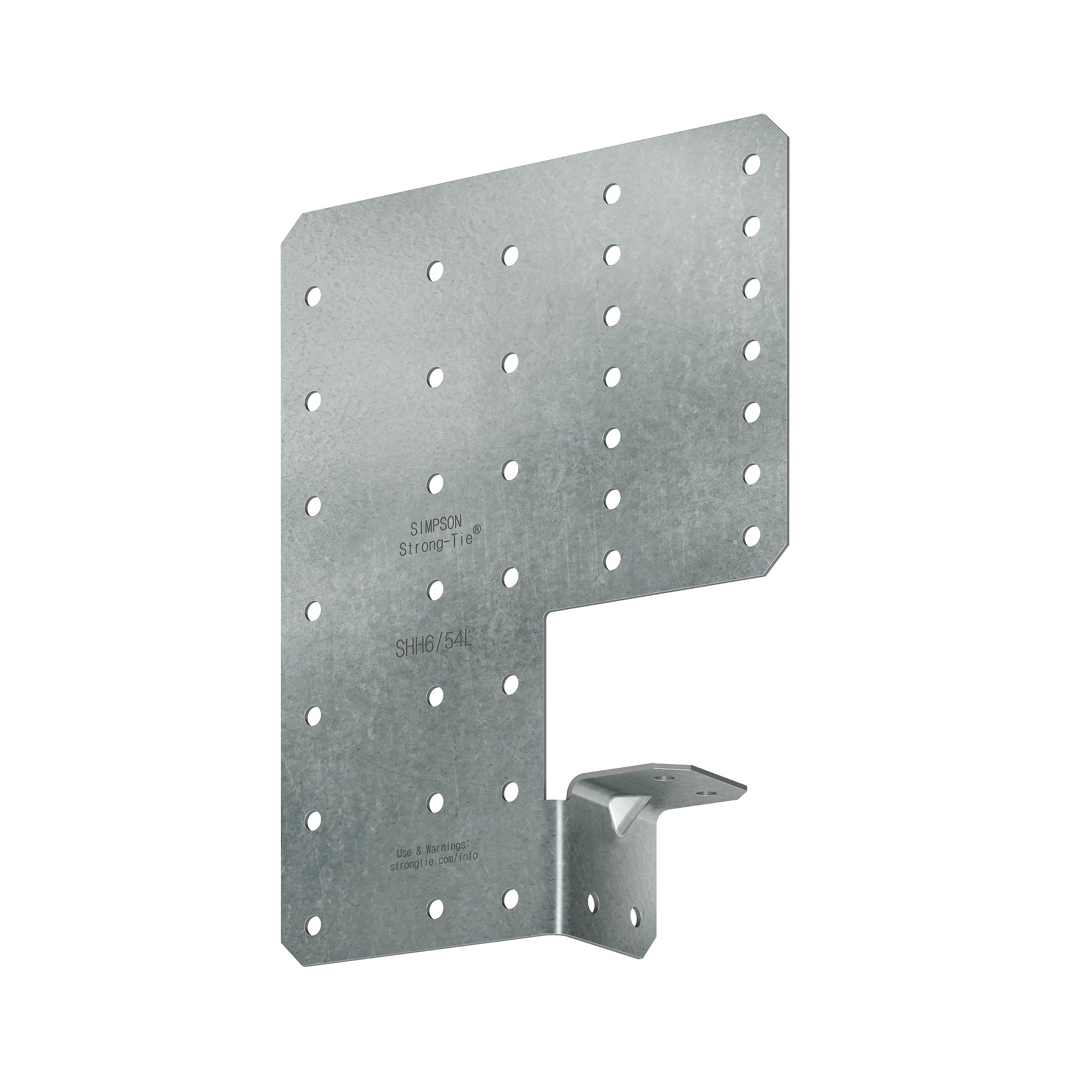

Simpson Strong-Tie SHH6/54-KT24
•The bottom tabs transfer wind load from the horizontal window header to the jamb studs and help support the header assembly during installation
•Tabulated loads are based on component assembly testing, which assists to mitigate design risk
•To enable easier drywall installation, the gusset portion of the SHH is coped to avoid 1 1/2″ (max.) track legs
•The screw-hole layout at the jamb studs accommodates flange sizes of 1-5/8 in., 2 in., 2-1/2 in., 3 in. and 3-1/2 in. – this versatility allows the load to be evenly distributed along two lines of fasteners so that each jamb stud carries equal axial load with minimum eccentricity
•Made from 54-mil/16-gauge steel intended for use with 6-in.-deep (min.) box headers
•Galvanized (G90) for extra corrosion resistance
•Packaged as a box of 12 right-handed connectors and 12 left-handed connectors
Product Overview
TheSimpson Strong-Tie SHH6/54-KT24offers a robust solution for supporting traditional Cold-Formed Steel (CFS) box headers and large-flange lay-in headers. Crafted from 54-mil galvanized steel, this header hanger is designed to meet the demands of modern construction while ensuring longevity and reliability.
Key Features
- Versatile Support:Ideal for CFS box headers fabricated with top and bottom tracks as well as large-flange lay-in headers used in curtain-wall construction.
- Efficient Design:The unique connector geometry minimizes drywall buildup, making installation cleaner and easier.
- Optimized Screw Count:Through extensive testing, the number of screws required has been minimized, enhancing efficiency and reducing installation time.
- Value-Engineered Hole Patterns:A wide range of hole patterns is available to accommodate varying load levels while effectively minimizing installed costs.
Why Choose Simpson Strong-Tie?
Choosing theSHH6/54-KT24 Header Hangermeans opting for a product that combines strength, versatility, and cost-effectiveness. Whether you’re working on a residential or commercial project, this header hanger ensures that your construction needs are met with the utmost precision and durability.
Specifications
- Material:54-mil Galvanized Steel
- Dimensions:7-3/16 in. x 5-5/8 in.
- Quantity:24 per pack
Conclusion
Invest in theSimpson Strong-Tie SHH6/54-KT24 Header Hangerfor a reliable, efficient, and cost-effective solution for your construction projects. Experience the difference in quality and performance today!
