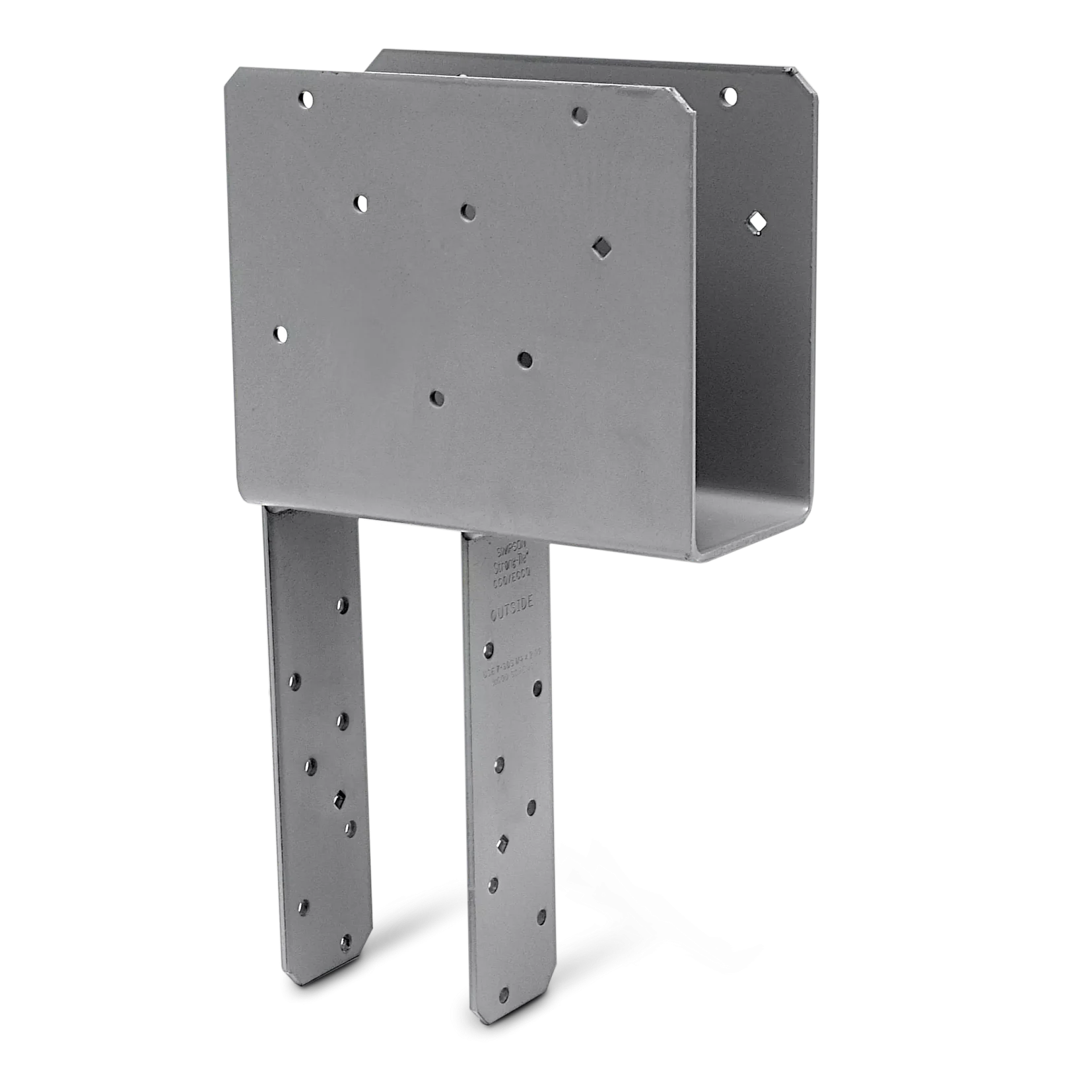

Simpson Strong-Tie ECCQ94SDS2.5 8-3/4″ BEAM, 4X POST SDS

Simpson Strong-Tie ECCQ94SDS2.5
•The SDS screws provide a lower profile than standard through bolts
•Certified welds for confidence in strength and loading
•Uplift loads have been increased for earthquake or wind loading
•Diamond holes for temporary fastening
•ECCQ3, ECCQ4, ECCQ4.62, ECCQ6 — 7 gauge; all others — 3 gauge
•Simpson Strong-Tie gray paint; available in HDG and stainless steel. See Corrosion Information.
•Fasten with 1/4″ x 2 1/2″ Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.) Use stainless-steel Strong-Drive screws with stainless-steel connectors.
•For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)

TheSimpson Strong-Tie ECCQ94SDS2.5 8-3/4″ BEAM, 4X POST SDSis engineered to deliver superior strength and reliability for your wood construction projects. This innovative column-beam connector is specifically designed to create robust connections in end-of-beam applications, making it an essential component for any structural undertaking.

Key Features

• Enhanced Load Distribution:The unique design of the ECCQ provides an extended bearing surface that effectively distributes the load from the beam, ensuring maximum support for your connections.
• Fast Installation:Equipped with Strong-Drive® SDS Heavy-Duty Connector screws, this product allows for quick and secure installation, saving you valuable time on the job site.
• Superior Support:By attaching to a greater net section area of the column compared to traditional bolt attachments, the ECCQ94SDS2.5 offers exceptional stability and strength.

Why Choose the Simpson Strong-Tie ECCQ94SDS2.5?

This product not only simplifies the construction process but also enhances the overall integrity of your wood structures. Whether you’re a professional contractor or a DIY enthusiast, theSimpson Strong-Tie ECCQ94SDS2.5 8-3/4″ BEAM, 4X POST SDSensures that your projects are built to last, combining ease of use with top-notch performance.
